Wooden clock – part 4

If you missed part 3 please find it here.

Face of the clock

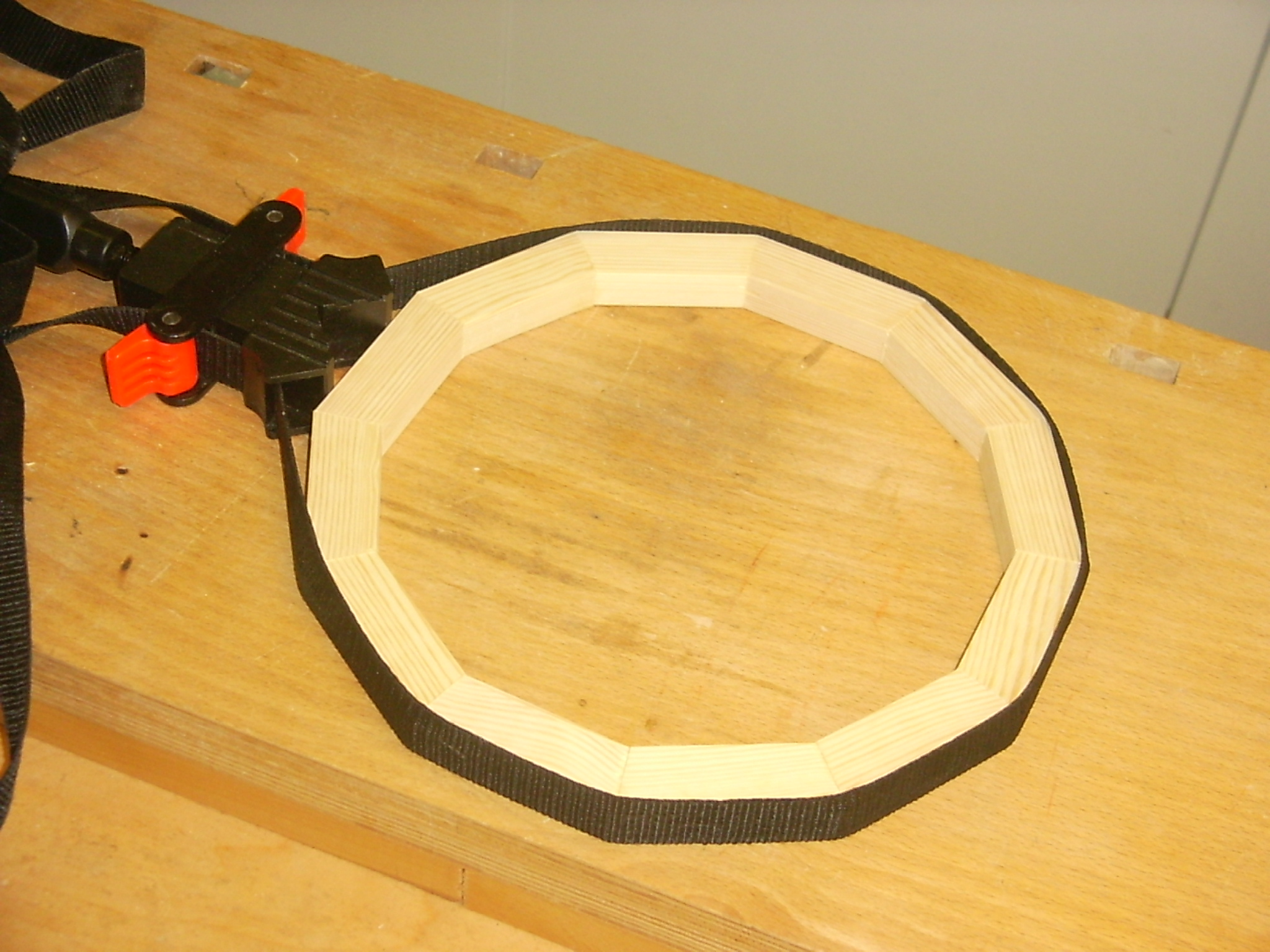

The clock face
The clock face

Now that I’ve detoured from the plans I decided to continue by making the face of the clock in the shape of a dodecagon without numbers. I made a pine list size 16×25 millimeters and made 12 pieces with a 15 degree angle at both ends and a length of 60 millimeters (the shorter of the two long sides) so that the dodecagon has an inner circumference of 720 millimeters.

I then glued them together as shown in the photo. My intension is to mount the ring on two dowels so it will be lifted about 15 millimeters from the frame. The face of the clock will then be a “floating” dodecagon where the corners represent the numbers 1 to 12.
