Partial solar eclipse

Partial solar eclipse

On March 20th we had a partial solar eclipse over Denmark where the sun was about 83% covered by the moon. Of course I would like to take some photos but I needed a solar filter for my camera. Why not build one using my ShapeOko? 🙂

Parts

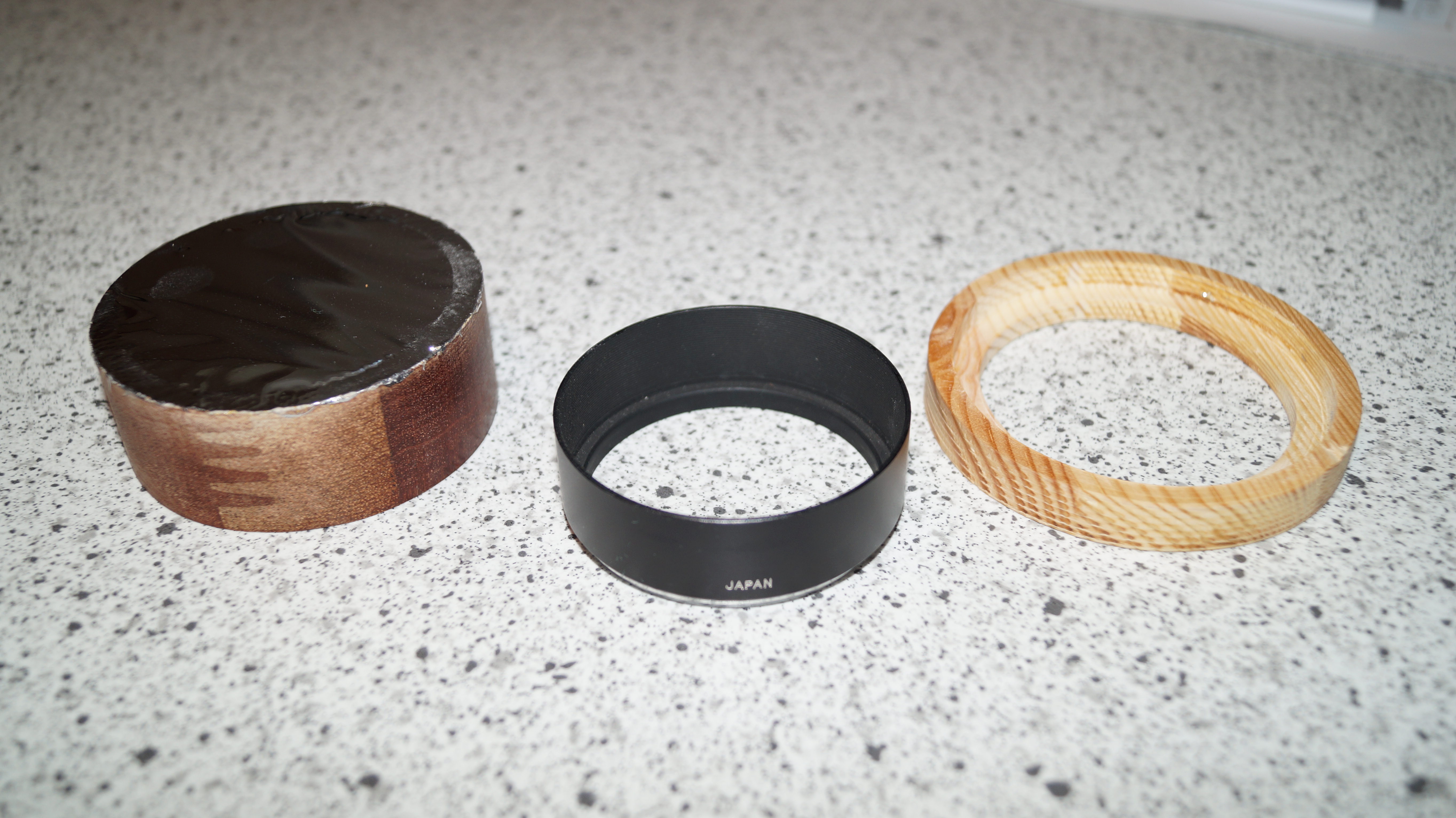

I have a lens hood for my camera and I decided to build an extension to hold the solar filter/film and that could easily be attached to the lens hood. Basically it’s just two rings: One ring to go over the lens hood and to have the solar film attached and a larger ring to go on top of the first ring to hold the solar film. The parts look like this:

Solar filter parts

Solar filter parts

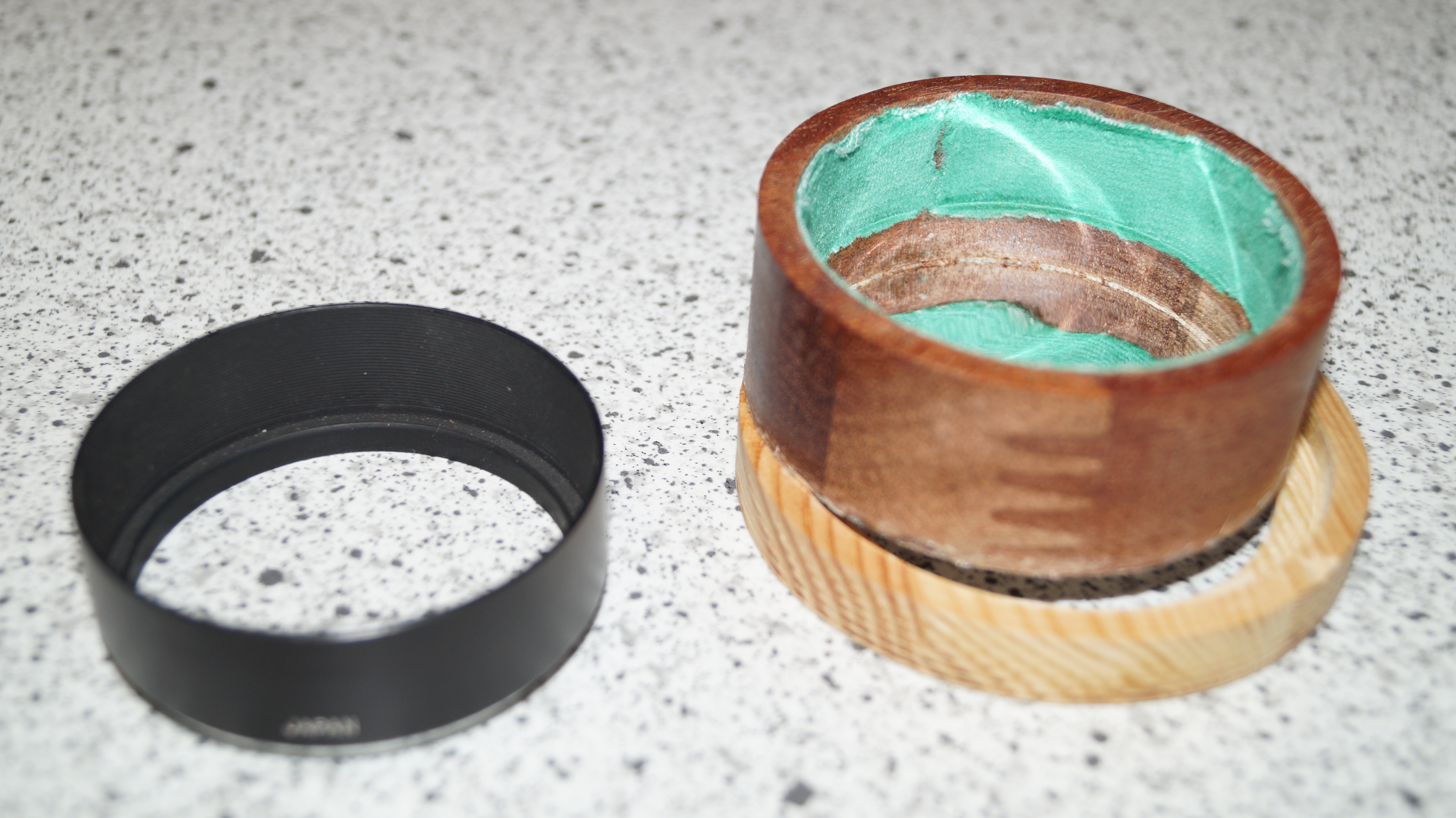

The ring that goes over the lens hood is made 1mm larger in diameter that the outside of the lens hood to give space for some cloth (to prevent scratches). In the photo I’ve already attached some solar film with double sided tape to the ring. Here is another view of the parts where the inner green cloth can be seen:

Solar filter parts 2

Solar filter parts 2

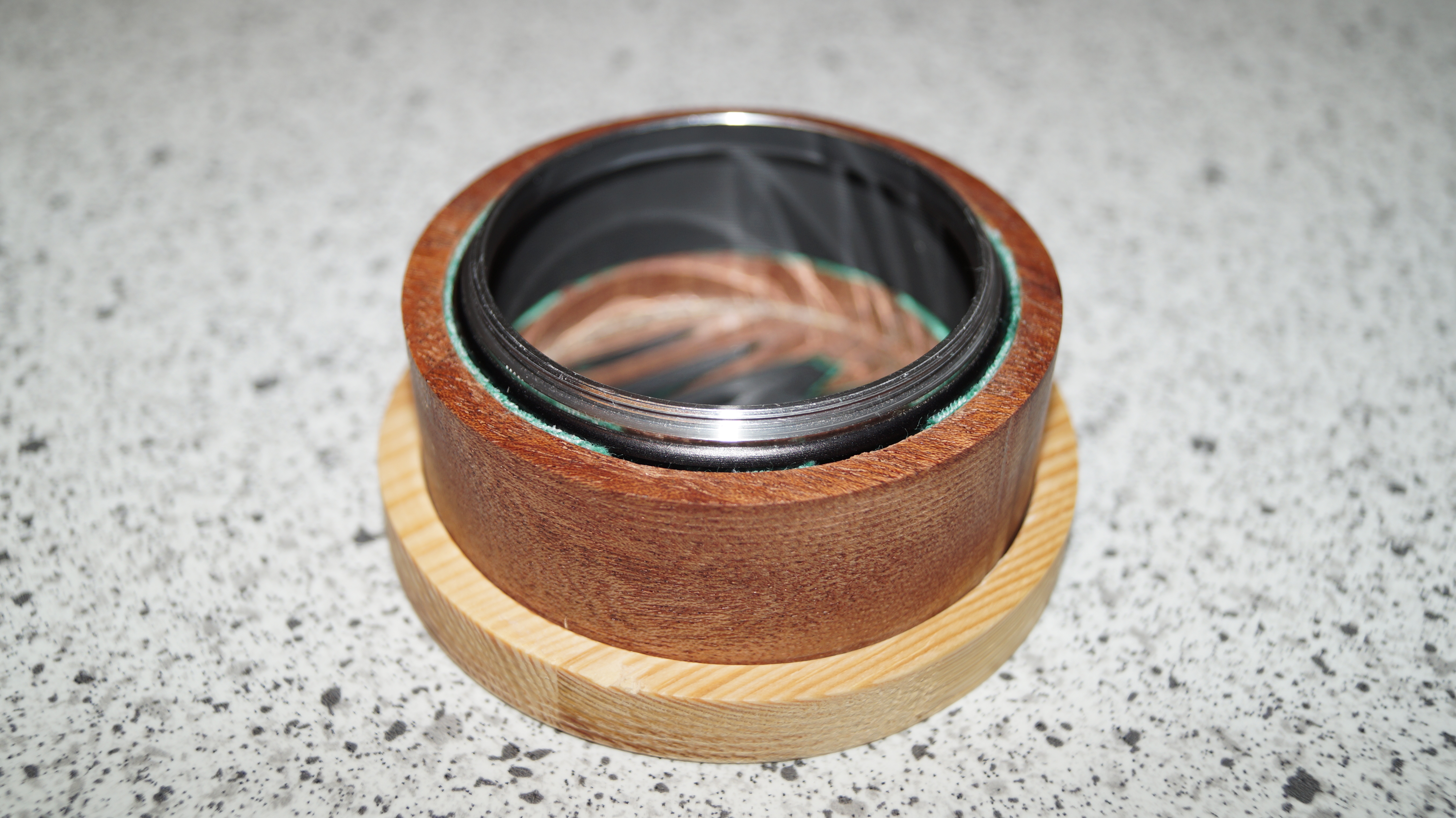

The outer ring is made to fit the inner ring with just 0.5mm of space. Here is the assembled solar filter:

Assembled solar filter

Assembled solar filter

Building the Dominion turntable and adjusting my ShapeOko 2 has really learned me a lot and has given me the accuracy that I would expect from a CNC machine in the first place. I just love when things actually work but I have to admit that it’s been a steep learning curve and a lot of tinkering, before I’ve gotten to this point with my ShapeOko 2. 🙂

If you have a ShapeOko and is getting more and more frustrated with it, I encourage you not to give up just yet. Feel free to ask any question or even better: search and/or contribute to the ShapeOko forum where a lot of nice people will help you in any way they can. 🙂

The solar eclipse

Unfortunately the weather was rather cloudy at the time of the event in the part of Denmark where I live, so I didn’t get any good photos. 🙁 The only one I got was this one taken without the solar filter:

Partial solar eclipse

Partial solar eclipse
